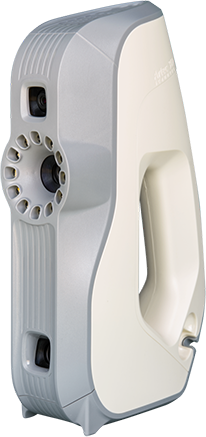

Fast 3D scanner for professionals
This structured light 3D scanner is the ideal choice for making a quick, textured and accurate 3D model of medium sized objects such as a human bust, an alloy wheel, or a motorcycle exhaust system. It scans quickly, capturing precise measurements in high resolution.
Light, fast and versatile, Eva is our most popular scanner and a market leader in handheld 3D scanners. Based on safe-to-use structured light scanning technology, it is an excellent all round solution for capturing objects of almost any kind, including objects with black and shiny surfaces.
Download Artec scanners brochure
Please note that the prices displayed on our website are the Recommended Retail Prices. They do not include taxes, import fees or any other additional costs that may apply, depending on the location of your business. We suggest you contact an authorized Artec reseller in your city, state or country to check the specific prices in your region.
Bestselling handheld 3D scanner on the market
Up to 0.1mm accuracy with no need for targets
Book a FREE product demo, at your office or ours:
Artec Eva’s ease of use, speed and precision has made it an essential product for a wide range of industries. From rapid prototyping to quality control, CGI to heritage preservation, the automotive industry to forensics, medicine and prosthetics to aerospace, the device is used to customize, innovate and streamline countless forward-thinking industries. Eva was even used to scan Barack Obama and help make the very first 3D portrait of an American president.
Capturing and simultaneously processing up to an impressive two million points per second, Eva also provides high accuracy — up to 0.1 mm.
Scan in brilliant color and high 3D resolution
Make full color 3D replicas of your object
Starting from 10 cm
Full color scanning
Hybrid geometry and color based
3D reconstruction rate
All popular formats, including STL, OBJ, PLY, BTX
Weight of scanner
Link up the 0.85 kg 3D scanner to a tablet and the Artec battery pack, which provides up to 6 hours of power, and you can scan practically anywhere, even in areas where there is no source of electricity.
Eva uses white structured light technology, making it totally safe for scanning people, as well as inanimate objects.
No need for preparation, just plug in the scanner and point it around the object as you would with a video camera. Simple.
For capturing larger 3D objects or for creating an automatic scanning system, several scanners can be bundled and synced together. You can also integrate the scanners into your own customized solutions using the free of charge Artec Scanning SDK.
Eva is able to read both the geometry and color of the object being 3D scanned. As a result it collects two sets of data by which to track and to perform post-processing.
THOUSANDS OF SATISFIED CUSTOMERS, INCLUDING:
Smart and easy 3D data post-processing software
Enjoy the full range of advanced tools with the most comprehensive 3D data processing software available today.
Working with 3D scanning data has never been easier thanks to the smart Autopilot mode which ensures the most seamless workflow for new and experienced users alike, by automatically guiding them through all of the post-processing steps. This revolutionary mode applies the best possible algorithms to your scan data in order to build a perfect 3D model right before your eyes.
Manual mode is also available, giving users absolute control over advanced tools. Whether you use Autopilot or manual mode, Artec Studio will create high-quality 3D models suitable for export to CAD, 3D printing and more.
Scan-to-CAD features for inspection and engineering
Get the best results effortlessly with the smart Autopilot mode
Quick and powerful 3D data processing at your fingertips
|3D point accuracy, up to||0.1 mm||0.05 mm||0.1 mm||0.01 mm|
|3D resolution, up to||0.5 mm||0.1 mm||0.5 mm||0.029 mm|
|3D accuracy over distance, up to||0.03% over 100 cm||0.03% over 100 cm||0.03% over 100 cm||—|
|Working distance||0.4 – 1 m||0.2 – 0.3 m||0.35 – 1.2 m||—|
|Volume capture zone||61,000 cm³||2,000 cm³||160,000 cm³||324 cm³|
|Linear field of view, H×W @ closest range||214 × 148 mm||90 × 70 mm||244 × 142 mm||—|
|Linear field of view, H×W @ furthest range||536 × 371 mm||180 × 140 mm||838 × 488 mm||—|
|Angular field of view, H×W||30 × 21°||30 × 21°||38.5 × 23°||—|
|Ability to capture texture||Yes||Yes||Yes||Yes|
|Texture resolution||1.3 mp||1.3 mp||2.3 mp||6.4 mp|
|Colors||24 bpp||24 bpp||24 bpp||24 bpp|
|3D reconstruction rate for real-time fusion, up to||16 fps||7.5 fps||22 fps||—|
|3D reconstruction rate for 3D video recording, up to||16 fps||7.5 fps||44 fps||—|
|3D reconstruction rate for 3D video streaming, up to||—||—||80 fps||—|
|Data acquisition speed,
|2 mln points / sec.||1 mln points / sec.||3 mln points / sec.||1 mln points / sec.|
|3D exposure time||0.0002 s||0.0002 s||0.0002 s||Customizable|
|2D exposure time||0.00035 s||0.0002 s||0.0002 s||Customizable|
|3D light source||Flash bulb (no laser)||Blue LED||VCSEL||Blue LED|
|2D light source||White 12 LED array||White 6 LED array||White 12 LED array||RGB LED|
|Position sensors||—||—||Built-in 9 DoF inertial system||—|
|Display / touchscreen||USB streaming through an external computer||USB streaming through an external computer||Integrated 5.5" half HD, CTP. Optional Wi-Fi / Ethernet video streaming to external device||USB streaming through an external computer|
|Multi-core processing||On external computer||On external computer||Embedded processors: NVIDIA® Jetson™ TX1 Quad-core ARM® Cortex®-A57 MPCore Processor NVIDIA Maxwell™ 1 TFLOPS GPU with 256 NVIDIA® CUDA® Cores||On external computer|
|Interface||1 × USB 2.0, USB 3.0 compatible||1 × USB 2.0, USB 3.0 compatible||Wi-Fi, Ethernet, SD card||USB 3.0|
|Internal hard drive||—||—||256 GB SSD||—|
|Supported OS||Windows 7, 8 or 10 x64||Windows 7, 8 or 10 x64||Scanning: No computer required Post-processing: Windows 7, 8, 10 x 64||Windows 7, 8 or 10 x64|
|Minimum computer requirements (See here for detailed hardware requirements.)||i5 or i7 recommended, 12GB RAM||i5 or i7 recommended, 18GB RAM||i5 or i7, 32GB RAM A computer is needed only for post-processing. Scanning does not require a computer.||i5 or i7 recommended, 32GB RAM|
|3D mesh formats||OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB|
|3D point cloud formats||BTX, PTX|
|CAD formats||STEP, IGES, x_t|
|Formats for measurements||CSV, DXF, XML|
|Power source and dimensions|
|Power source||AC power
or external battery pack
or external battery pack
|Built-in exchangeable battery, optional AC power||AC power|
|Dimensions, HxDxW||262 × 158 × 63 mm||190 × 140 × 130 mm||231 × 162 × 230 mm||290 x 290 x 340 mm|
|Weight||0.9 kg / 2 lb||0.8 kg / 1.8 lb||2.6 kg / 5.7 lb||12 kg / 26.7 lb|
Resolution is the ability of a scanning system to resolve detail in the object that is being scanned.
Accuracy is the ability of a measurement to match the actual value of the quantity being measured.
The Artec battery pack gives up to 6 hours of continuous scanning time. This means you can really take an Artec scanner anywhere and capture objects right in the field. Compatible with all Artec handheld scanners.
Designed with Eva’s measurements in mind, this hard case will keep it safe during storage and transportation.
A fully tested cable featuring the connector needed for your Artec scanner.
